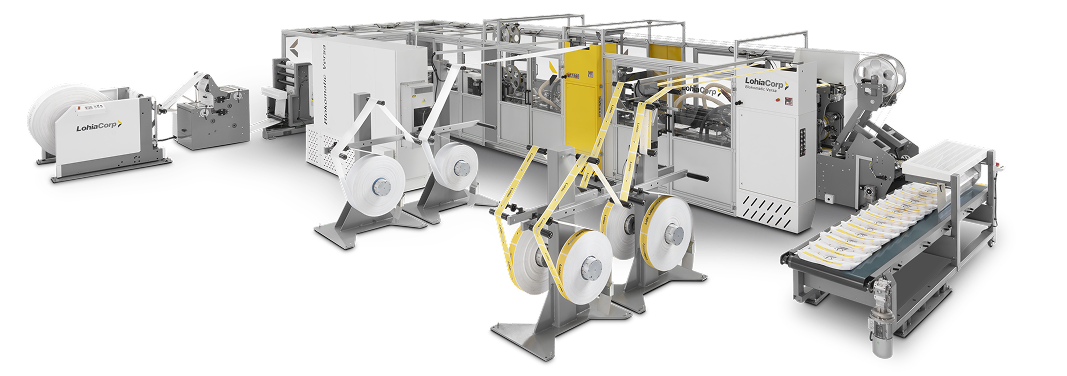

Blokomatic
Blokomatic is a technologically advanced and efficient ‘Valve Bottomer’ system. Engineered with the unique iFit, our machines have a superior level of intelligence for conversion of Polypropylene Coated/Laminated woven fabric into adhesive-free Block Bottom Valve Bags. Hence, you benefit from the system’s ability to detect any fabric defects and eject it immediately after cutting. The result is uninterrupted production, savings on material costs and higher efficiencies. So, you get far better returns on investment and the assurance of a truly advanced Blokomatic Valve Bottomer. Moreover, these box-like shape bags when stacked over one another gives you an advantage good visibility of your brand. For your packaging requirement of packaging cement, other building materials, dry granular materials chemicals/petrochemicals.
Discover intelligence that improves your profitability
Ensuring perfect & consistent bottom forming with highest efficiency
iFIT: Intelligent fabric defect inspection system
Superior savings – reduced consumables and operational cost
Integrated advanced diagnostics
Block Bottom Valve bag production with speed and precision
Blokomatic
-
SpecificationsBlokomatic 120 & Blokomatic Prime 120Blokomatic Versa
-
Bag length47-67 cm45 - 105 cm
-
Bag width35-53 cm30-60 cm
-
Bottom width8-12 cm8-18 cm
-
Opened bottom width18-26 cm18-38 cm
-
Bottom center distance37 - 57 cm37 - 90 cm
-
Tube - Cutting length53-80 cm53-120 cm
-
Valve - Cutting length8-20 cm8-20 cm
-
Valve - Width of flat fabric17-26 cm17-33 cm
-
Cover patch - Cutting length26.5 - 45 cm21.5 - 56 cm
-
Cover patch - Width of flat fabric7.5 - 11.5 cm7.5 - 17.5 cm
-
Production Speed120* bags/min140* bags/min
-
Dimension - L x W x H14.4 m x 8.4 m x 2.45 m14.9 m x 9.1 m x 2.45 m
Slitomatic
-
SpecificationsSlitomatic
-
Input width (max.)750 mm
-
Roll diameter on unwinding unit (max.)1200 mm
-
Operating speed (max.)100 m/m
-
Dimensions (L X W X H)5.5 X 3.4 X 2.2 m
#Final Scope of Blokomatic Prime 120 is as per the technical specification.
*Max size depends upon the fabric quality, bag size and overlap.
Specifications are subject to change without prior notice, due to continuous developments. These are indicative and not binding.
The pictures may show optional equipments that are not a part of the standard supply.
Create a range of products with our versatile Conversion machines
Leno bags
Pillow bags
Valve bottomer bags
Jumbo bags
