Hemmomatic

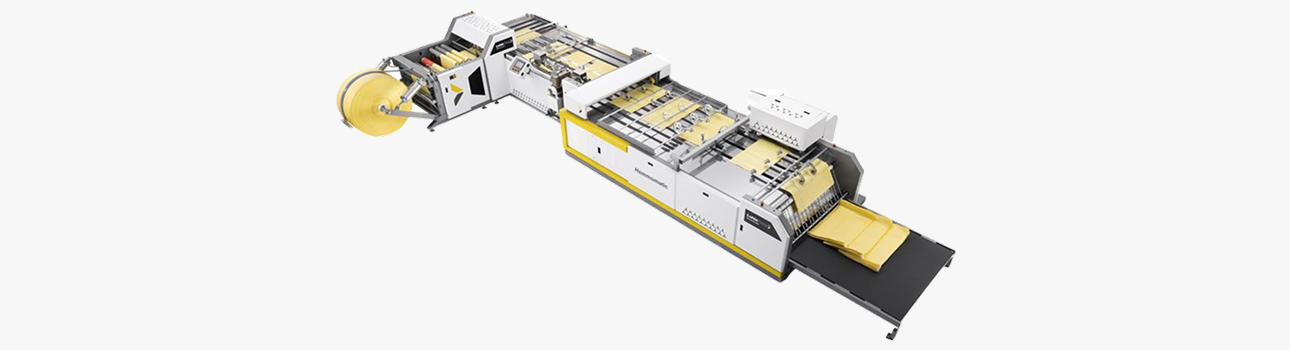

A high-speed conversion line for producing top-hemmed, bottom-stitched pillow bags from tubular PP/HDPE woven fabric rolls. It is a ideal solution for preventing tape fraying in uncoated fabrics while ensuring a clean, durable finish. The integrated process includes cross-cutting, bottom folding and sewing, top hemming, and stacking. The machine is also capable to operate in BCS mode to produce bags for a wide range of applications, including rice, flour, chemicals, fertilizers, pulses, pet food, and building materials.

High-speed production of top-hemmed, bottom-stitched pillow bags

Prevents fraying with clean, durable top hemming.

Automates high-speed production of consistently finished bags.

Maximizes material efficiency through precision engineering.

Delivers reliable performance with low maintenance.

Consistent hemming. Superior finish, every bag

Specifications

Hemmomatic
Width of unwinding fabric roll

500 - 750 in hemming mode, 300 - 850 mm in BCS mode
Diameter of fabric roll (max.)

1300 mm
Internal diameter of core

70 - 115 mm*
Replacement of fabric roll

Pneumatic system
Cutting Length

750 - 1350 mm in hemming mode, 500 - 1350 mm in BCS mode
Cutting length accuracy

±1 mm
Bottom folding width

20 - 30 mm**
Top Folding Width

25 mm**
Stitching type

Single stitch / double stitch
Stitching range

4.0 - 9.0 mm
Production speed

upto 22 bags/min* in hemming mode upto, 40 bags/min in BCS mode
Dimensions (L x W x H)

9.4 x 5.1 x 1.4 m

*Depends on width, quality of fabric used, winding & PP multifilament stitching yarn etc. **Folding accuracy ± 1.5 mm Specifications are subject to change without prior notice, due to continuous developments. These are indicative and not binding. Extreme values indicated are not achievable simultaneously. The pictures may show optional equipments that are not a part of the standard supply.For details, refer to the quotation.
